Correct Tubing Match
The key buying condition is rigid nylon/PE tubing compatibility, especially tubing outer diameter and pressure requirement.
Top-Pressure Quick Fittings

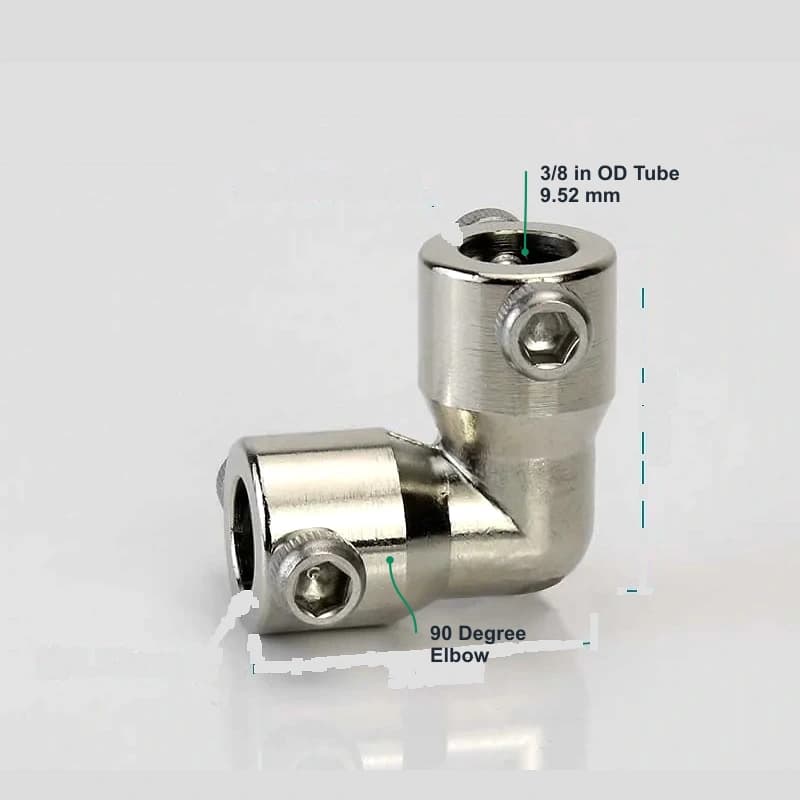

Plated Copper 3/8 in (9.52 mm) Top-Pressure Quick Fitting - Elbow
A plated copper top-pressure quick fitting for 3/8 in (9.52 mm OD) rigid nylon/PE misting tubing. It uses a screw-pressure tube locking structure and is suitable for turning 3/8 in (9.52 mm OD) rigid misting tubing around corners in greenhouse cooling, landscape misting, livestock cooling, factory humidification, and dust suppression systems.
Direct RFQ
Request a matched quote for Plated Copper 3/8 in (9.52 mm) Top-Pressure Quick Fitting - Elbow
Share the application, target quantity and any known pressure or tubing requirement. We will match the selected component with the rest of the misting line.
- Reply email or WhatsApp
- Selected product or application
- Quantity and pressure can be added later
We review the nozzle, tubing, fittings and pump requirement together before preparing a quotation.
Connection Structure
Keep push-in, compression and screw-lock components separate in the parts list. Allow access for the insertion, tightening or release procedure required by the selected fitting.
Connection and Tube Selection
Select rigid tubing fittings and quick-connect fittings by tube material, outside diameter, connection geometry and operating pressure. Match nylon tubing fittings to the specified misting pipe before assembly.
Selection focus
Confirm the model, application, pressure and quantity before requesting a quotation.
Wholesale Buying Notes
What buyers should confirm before quotation
- These fittings are for rigid nylon/PE tubing in high-pressure misting lines, not for soft hose.
- Specify push-in, compression or screw-lock construction as well as tube OD, material, pressure, temperature and fitting shape.
- For replacement fittings, provide the rigid nylon/PE tube specification and the existing connector dimensions; soft-hose fittings require a different connection system.
Application Fit
Recommended applications
Factory Dust Suppression
Industrial misting systems for dust suppression and cooling in factories, workshops, and production areas.
Greenhouse Cooling
Complete high-pressure misting systems for greenhouse temperature control using nozzles, rigid tubing, fittings, and pump units.
Greenhouse Spraying
Crop-row spraying components for greenhouses, selected by coverage, spray pattern and intended medium.
Livestock Cooling
Cooling misting systems for farms and livestock houses, supplied as complete nozzles, tubing, fittings, and pump packages.
Landscape Misting
Outdoor landscape fog and misting systems for gardens, scenic areas, commercial outdoor spaces, and cooling effects.
FAQ
Common buying questions
Are these fittings used for soft hose?
No. These fittings are designed for rigid nylon/PE tubing in high-pressure misting systems, not flexible soft hose.
Are push-in, compression and screw-lock fittings interchangeable?
No interchangeability should be assumed. These structures retain the tube differently. Match the tube, seal and locking parts to the selected series, and confirm the assembly procedure before replacing a fitting.
What should I check before replacing a rigid-tube fitting?
Confirm the rigid nylon/PE tube outside diameter, working pressure, retention mechanism and sealing arrangement. Send the existing fitting dimensions or a sample for compatibility review.
