High Pressure Nylon Tubing
9.52 mm High Pressure Nylon Tubing
9.52 mm Nylon tubing is used as the rigid line for high-pressure misting systems in agriculture, livestock, factory cooling, and dust suppression projects.
Direct RFQ
Request a matched quote for 9.52 mm High Pressure Nylon Tubing
Share the application, target quantity and any known pressure or tubing requirement. We will match the selected component with the rest of the misting line.
- Reply email or WhatsApp
- Selected product or application
- Quantity and pressure can be added later
We review the nozzle, tubing, fittings and pump requirement together before preparing a quotation.
Build your misting line component list
Select tubing, line fittings, nozzle holders and nozzles by their role. Match tube outside diameter at the tubing connection and nozzle thread at the holder; specify operating conditions and quantities for the selected parts.
Tubing
- 9.52 mm nylon tubing
Join, turn or branch
Add spray positions
Select the nozzle
Nylon and PE tubing
Black tubing for complete high-pressure misting lines
Black tubing for misting distribution lines in greenhouses, livestock buildings, workshops and outdoor cooling installations. Specify nylon or PE, then match the dimensions and fittings to the operating conditions.
- Black Nylon/PE misting tube for greenhouse, livestock, textile workshop, outdoor cooling and perimeter spray lines.
- Specify inside diameter, line length and required flow when sizing the tubing run.
- Match the tube material and outside diameter to the selected fitting series before assembly.
- Tube outside diameter (OD)
- 9.52 mm / 12 mm / 16 mm
- Material options
- Nylon or polyethylene (PE); specify material when ordering
- Quotation unit
- Meter
- Main uses
- Misting, pesticide spraying, cooling, humidification and dust suppression
Match tube and fitting before ordering
Select the tube material, outside diameter and connection structure together. Nylon and polyethylene (PE) are separate material options, not one resin grade.
Tube outside diameter (OD)
The listed range is 9.52, 12 and 16 mm OD. Specify the required diameter with the material; confirm the matching connector for each size. A 9.52 mm tube must not be substituted with 10 mm tube in the same fitting.
Inside diameter and wall thickness
Include the inside diameter or wall thickness when matching an existing line. Outside diameter alone does not define flow capacity or a pressure rating.
Operating conditions
Provide working pressure, water temperature, fluid, indoor or outdoor exposure and line length. Match the tube and fitting ratings to these conditions before installation.
Prepare your tubing order
- Material and OD, with ID or wall thickness for replacement tubing
- Total length, length per coil and number of coils
- Fitting series, nozzle locations, branches and line ends
- Working pressure, temperature and water quality

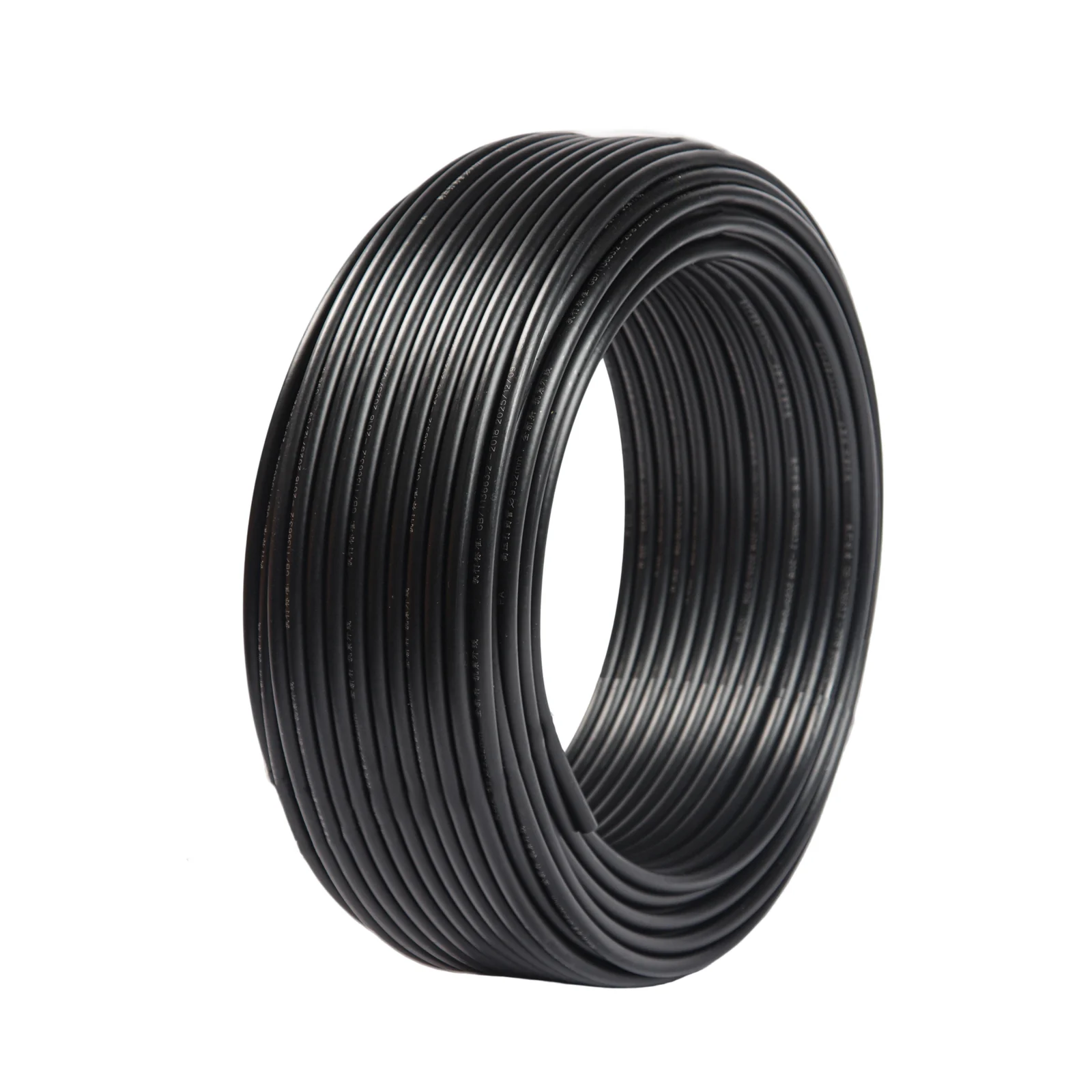

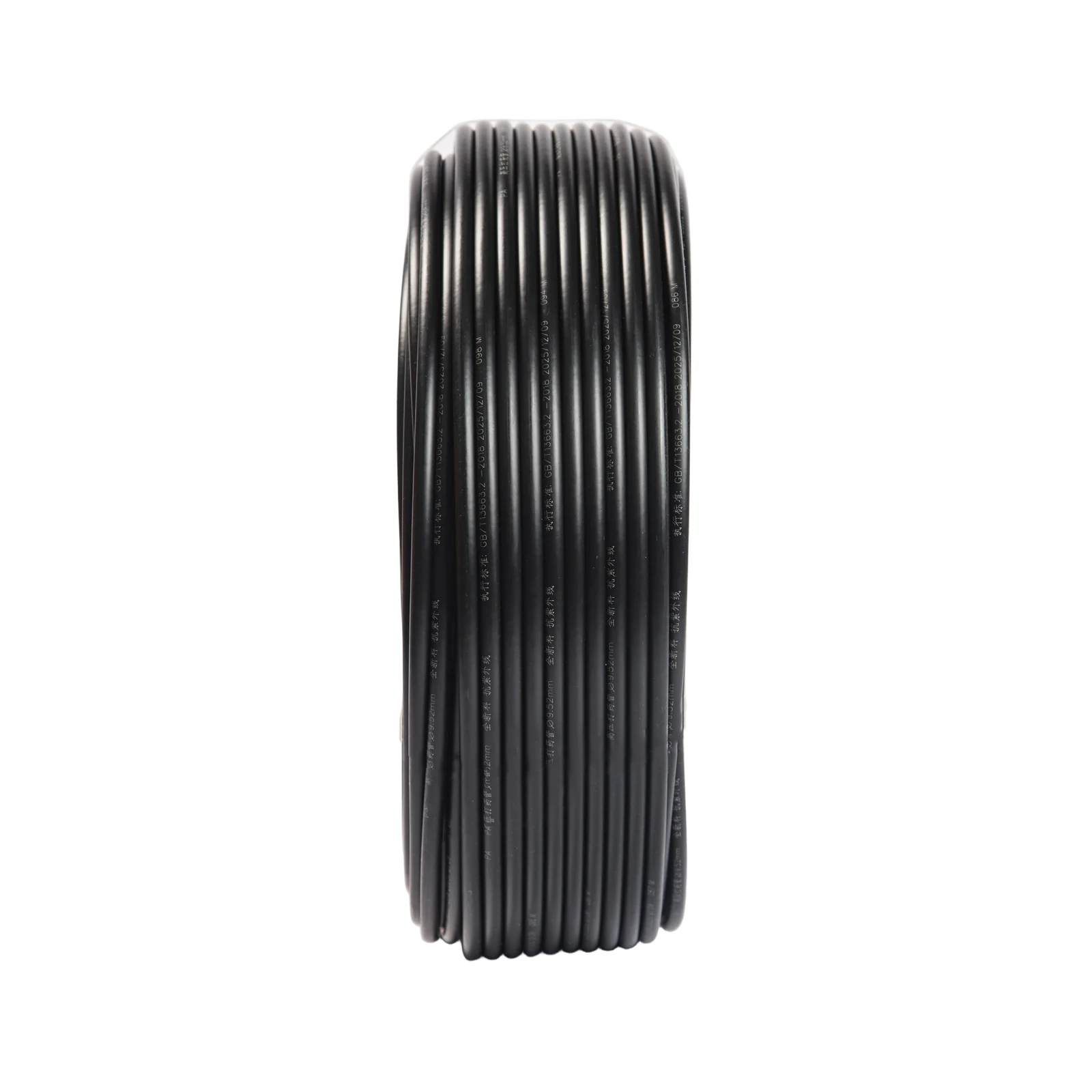

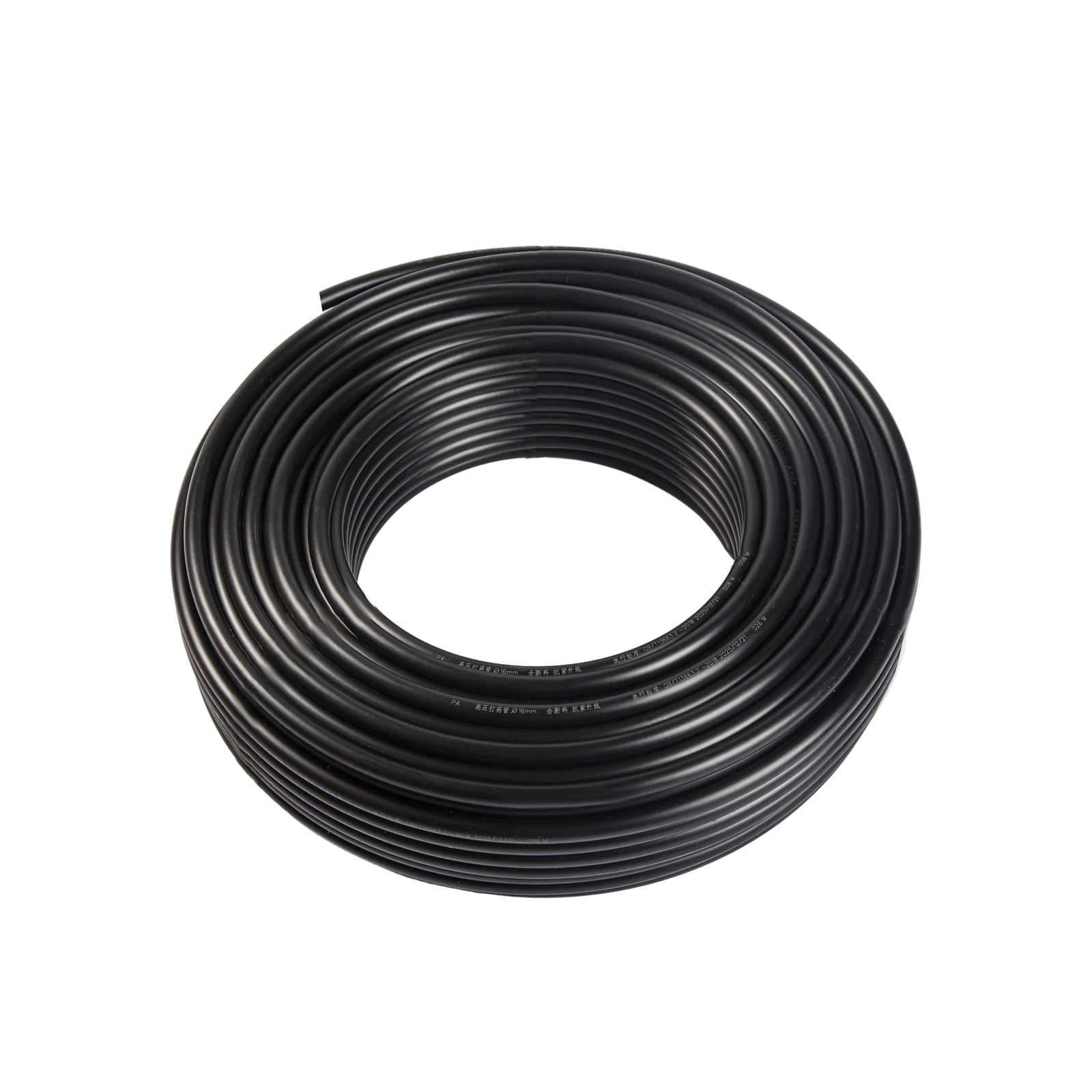

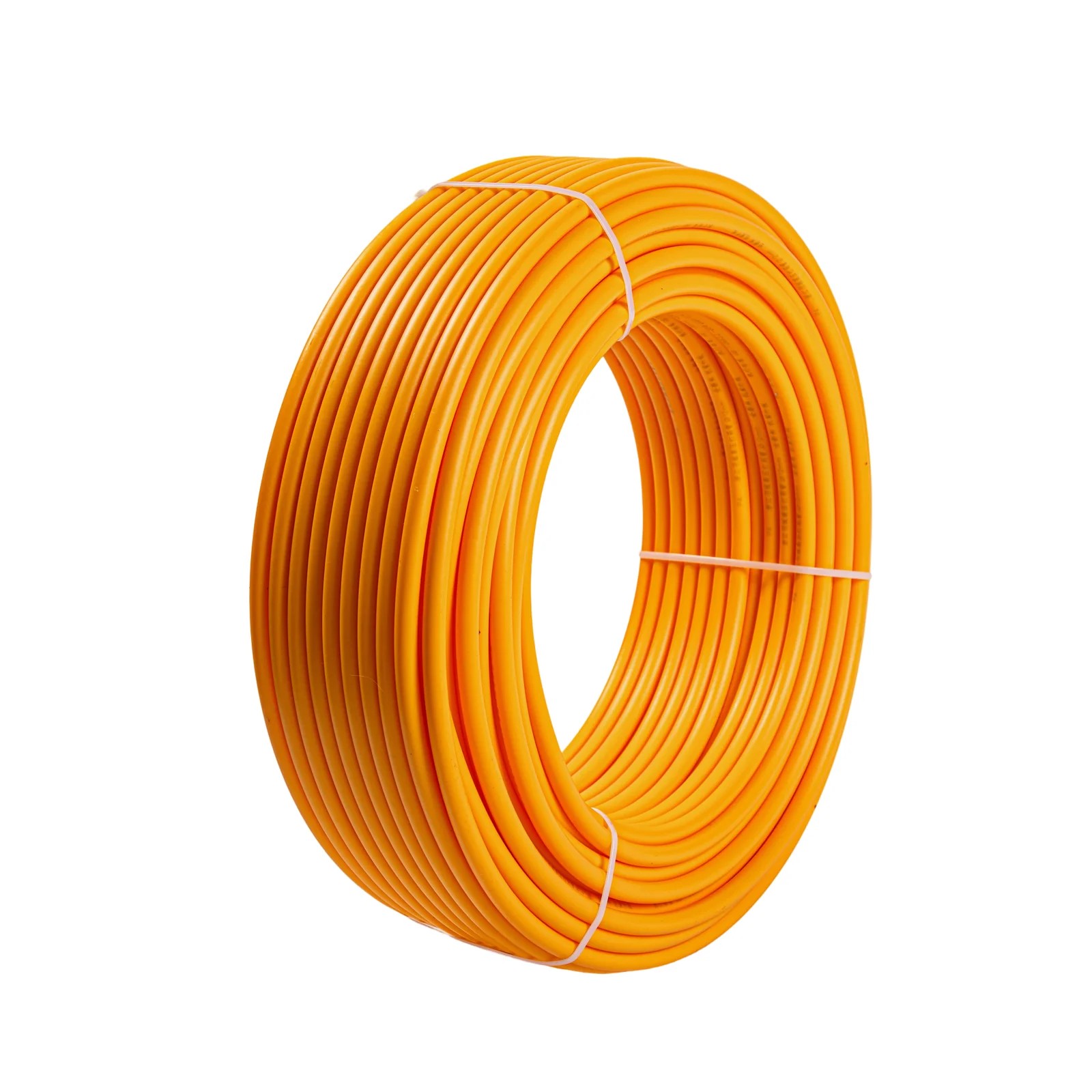

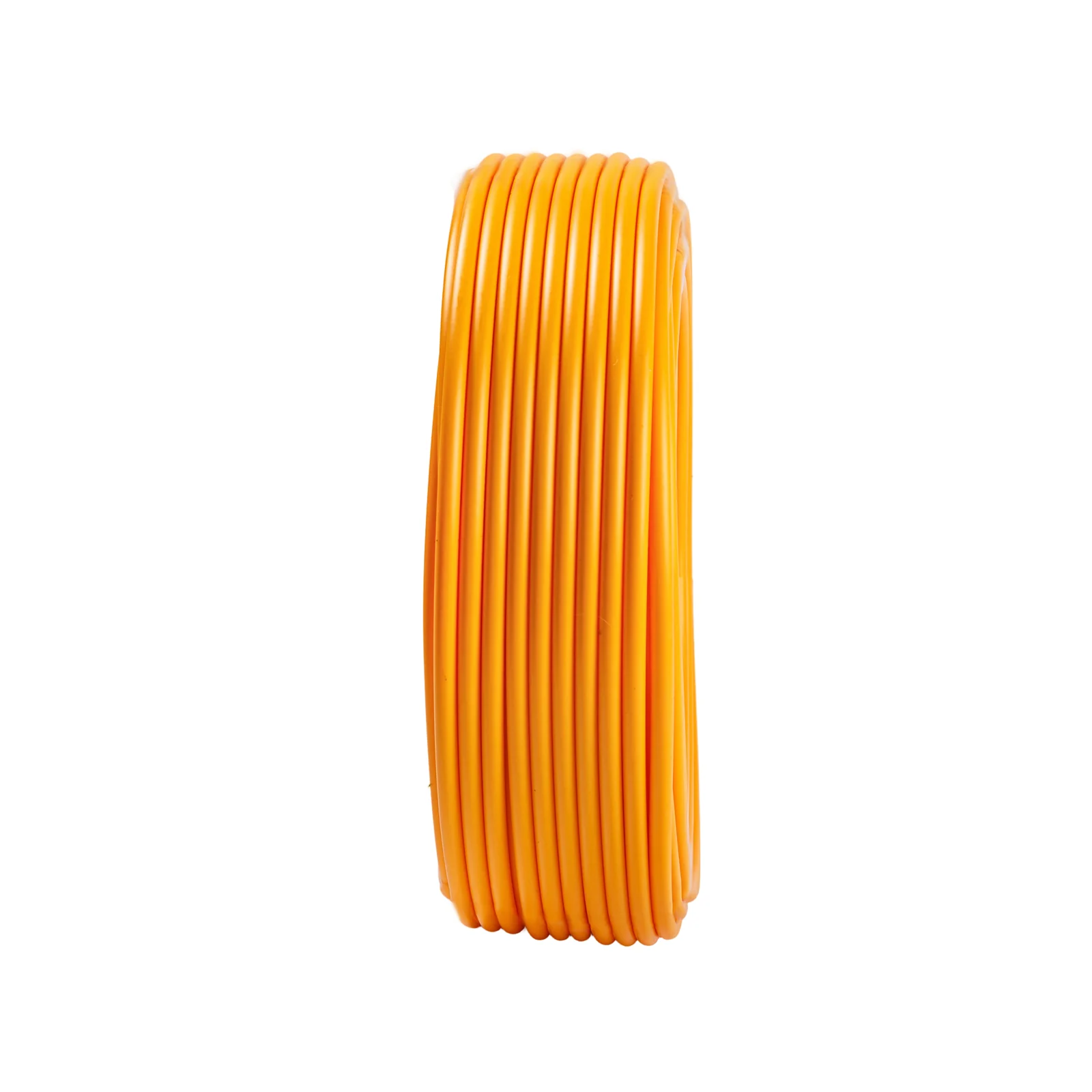

Tubing colours and coil views
Specify nylon (PA) or HDPE, tube dimensions and operating conditions with your enquiry.
Selection focus
Confirm the model, application, pressure and quantity before requesting a quotation.
Wholesale Buying Notes
What buyers should confirm before quotation
- Confirm tubing size, pressure requirement, line length, and fitting compatibility before ordering.
- Specify 9.52, 12 or 16 mm outside diameter and confirm the matching fitting series for that size and material.
- List nylon and PE as separate material requirements; include roll length, packaging and quantity.
Application Fit
Recommended applications
Factory Dust Suppression
Industrial misting systems for dust suppression and cooling in factories, workshops, and production areas.
Greenhouse Cooling
Complete high-pressure misting systems for greenhouse temperature control using nozzles, rigid tubing, fittings, and pump units.
Greenhouse Spraying
Crop-row spraying components for greenhouses, selected by coverage, spray pattern and intended medium.
Livestock Cooling
Cooling misting systems for farms and livestock houses, supplied as complete nozzles, tubing, fittings, and pump packages.
Construction Barrier Dust Suppression
High-pressure misting and barrier spray systems for construction sites, demolition areas, and outdoor dust control lines.
Landscape Misting
Outdoor landscape fog and misting systems for gardens, scenic areas, commercial outdoor spaces, and cooling effects.
Sports Field Cooling
Outdoor mist cooling systems for sports fields, spectator areas, training grounds, and hot-weather public spaces.
Factory Cooling
Industrial mist cooling systems for workshops, production areas, warehouses, and hot factory environments.
FAQ
Common buying questions
Can a 10 mm tube replace a 9.52 mm misting tube?
Not in a fitting specified for 9.52 mm tube. Match the actual outside diameter and permitted tolerance to the fitting specification; do not round 9.52 mm up to 10 mm.
Can the tubing be supplied as part of a system package?
Yes. Tubing should be quoted with compatible fittings, nozzles, and pump units for complete misting line projects.
Are nylon and PE the same tubing material?
No. Nylon is a polyamide; PE is polyethylene. Specify the material for each order and confirm its dimensions, temperature and pressure limits with the selected fittings.
